Magnesium Hydroxide Systems

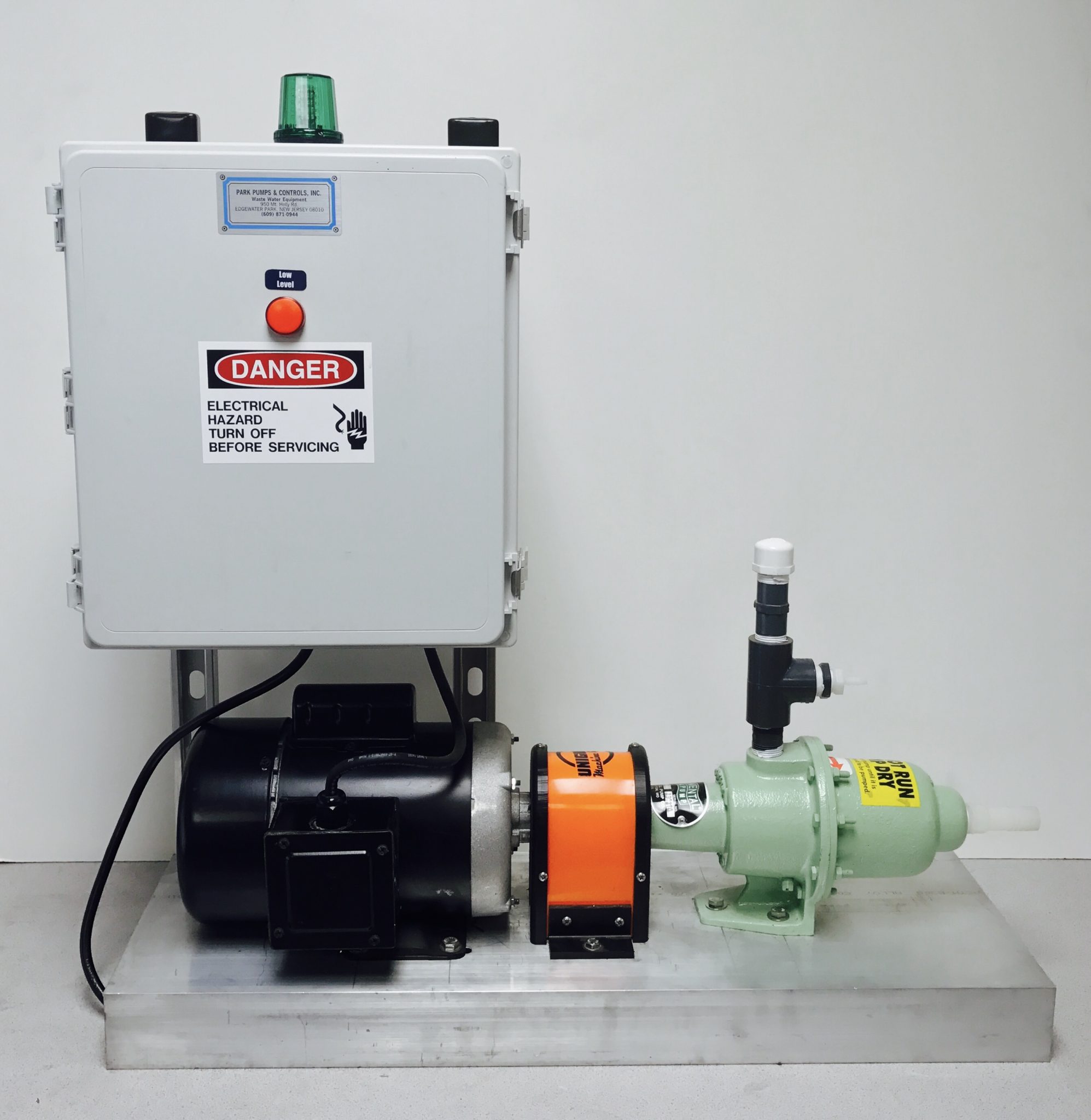

MODEL PC50

Complete unit with Progressive Cavity Pump and Control Panel

Tank & Mixer sized for customer needs

Time Dosed

This unit is for dosing  500,000 GPD flow or larger.

This system can be programmed for feeding as low as 1 quart every 15 minutes and up.

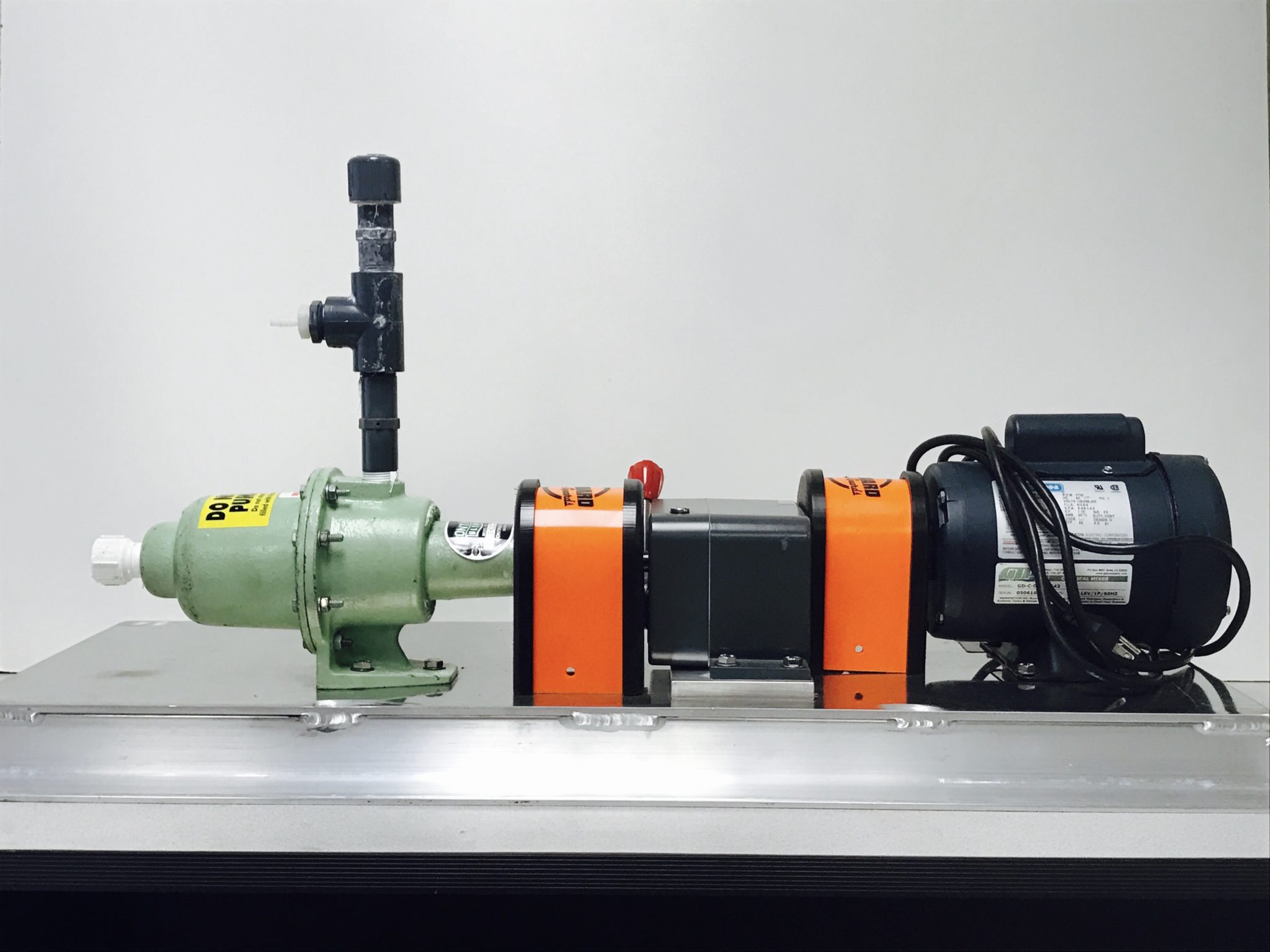

  • Progressive Cavity Pump with ½ hp, 115V, 1150 RPM motor
  • Pump range up to 1 GPM with 1 # to 1 gallon mixture.
  • Control center with P.L.C. for timed dosing

MODEL PC50-C

Complete unit with Progressive Cavity Pump and Controller

Tank & Mixer sized for customer needs

  • Progressive Cavity Pump with ½ hp, 115V, 1150 RPM motor
  • Controller for starting & stopping pump from existing motor starters
  • Feed rate controlled by Pump RPM

OPTION #1

  • Pump RPMS controlled by VFD controlled motor

OPTION #2

  • Pump RPMS controlled by mechanical speed controls.

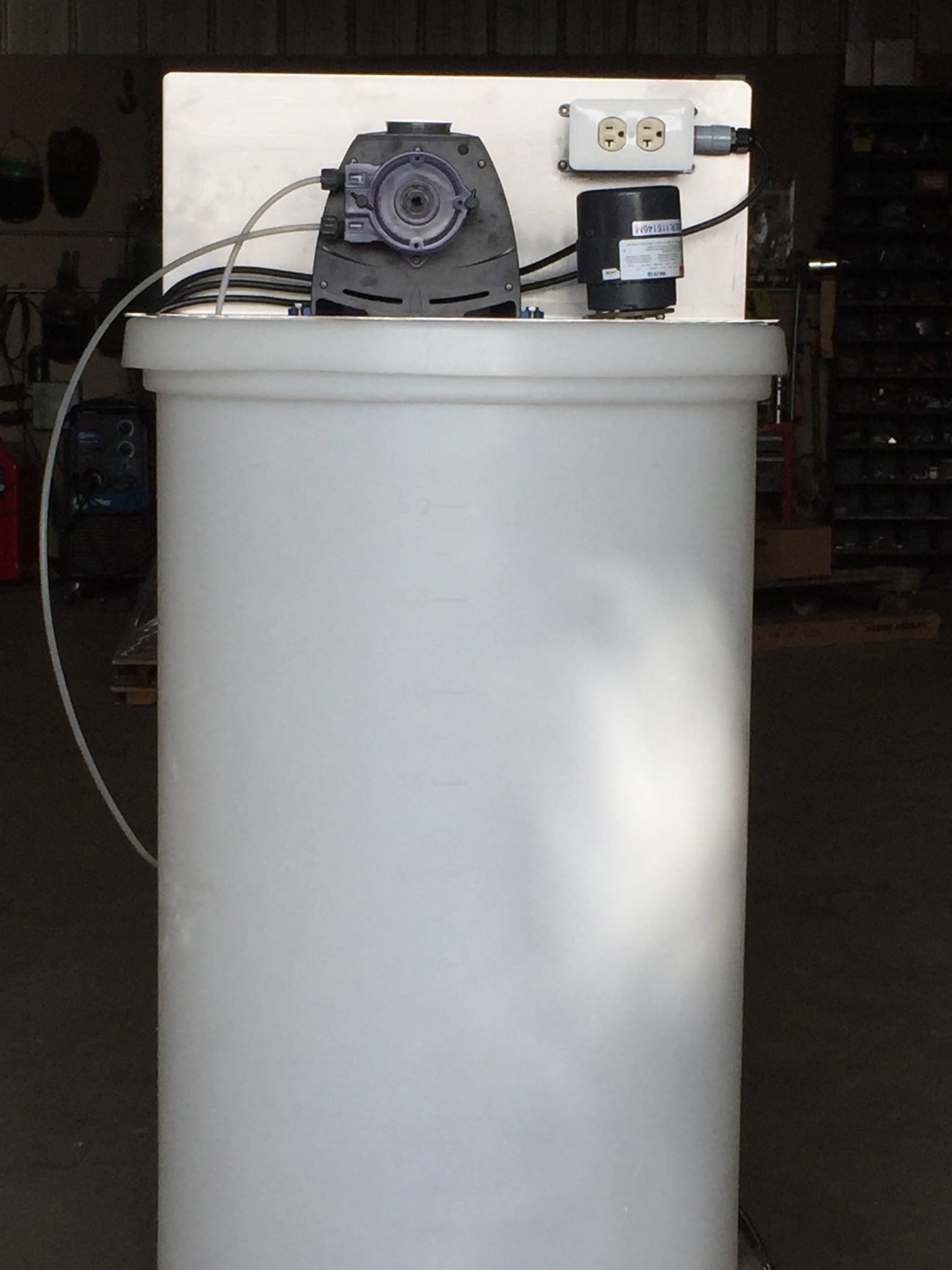

MODEL 10

Complete unit with peristaltic pump, tank and mixer

Tank sized to customer needs—mixer sized to tank

This is a self-contained unit with pump and mixer installed on top of tank.  Unit is for small systems, low flow pump stations, restaurants, septic systems – where flow is lower than 10,000 GPD.

  • Pump Sizes range from 4 GPD to 48 GPD of 1 # to 3 gal mix.
  • Pump has a 7 day electronic timer for dosing.
  • Tanks up to 360 gallons
  • Other options available

For Information on Magnesium Hydroxide Powder, Slurry or our Custom Feed Systems

Call Park Pumps at: 609-871-0944 or Email: shirley@parkpumps.com
